Upgrade your lighting with our high-performance 4" LED Floating Gimbal, expertly designed for versatility, safety, and modern aesthetics. This 2-hour fire-rated downlight features a sleek black finish, fully adjustable gimbal head, and smooth Triac dimming for personalized lighting control. Ideal for sloped ceilings, wall washing, artwork highlighting, or general lighting in damp-rated locations.
Whether you're retrofitting or starting new, this ultra-low-profile fixture installs easily — no housing or junction box required — making it a favorite among electricians and contractors.
🔧 Key Features

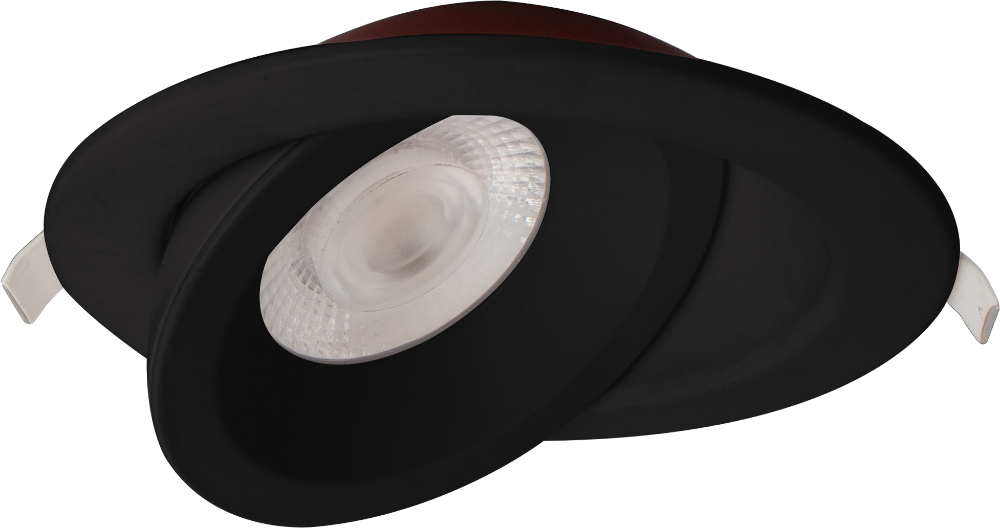

Adjustable Floating Gimbal – 90° tilt with 360° rotation for directional lighting
2-Hour Fire Rating – Certified to UL 263, ASTM E119, and CAN/ULC S101 standards
Selectable Color Temperature (5CCT) – Switch between 2700K, 3000K, 3500K, 4000K, or 5000K
Ultra Slim Profile – Only 1 3/8" deep; fits in tight 1" ceiling spaces
Air-Tight & Type IC Rated – Safe for use in insulated ceilings, improves energy efficiency

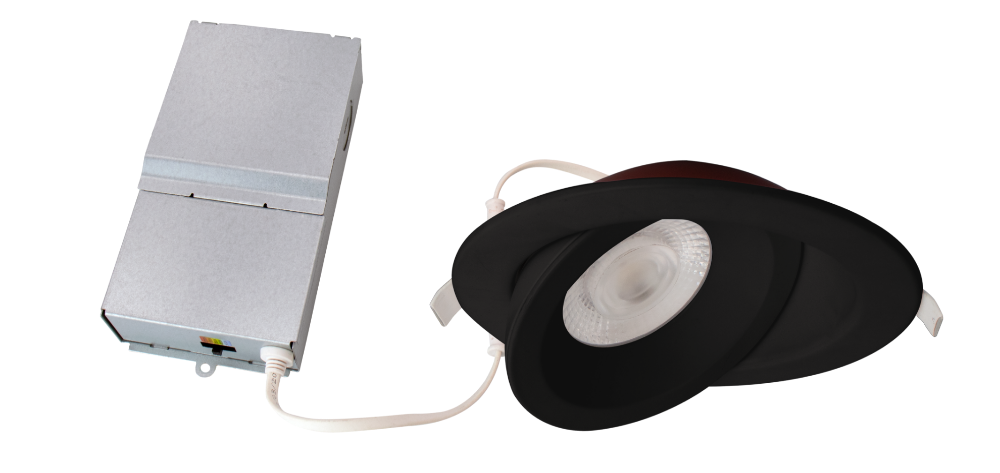

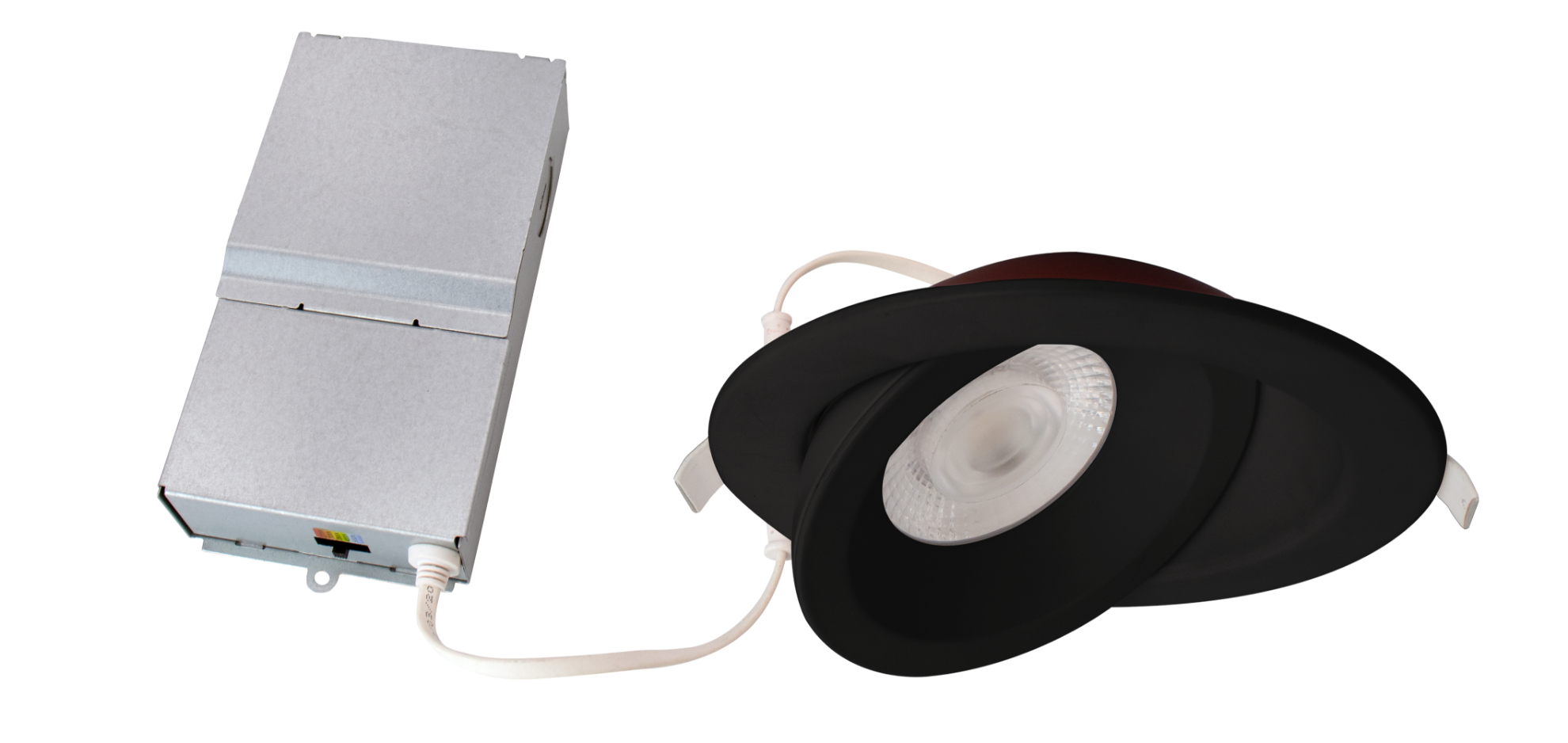

Integrated Driver in Connection Box – Eliminates the need for a separate junction box
Long-Lasting LED – Rated for 50,000+ hours of maintenance-free operation
Damp Location Rated – Perfect for bathrooms, kitchens, laundry rooms, and basements
Smooth Dimming – Compatible with standard 120V Triac dimmers (10%–100%)
Energy Efficient – Delivers 738 lumens using just 9 watts of power
Sleek Black Finish – Adds a modern, architectural touch to any space
Model | FDFG-FR-4-9W-5CCT-BK |
Energy Star Unique ID | 3891079 |
Watts | 9W |
CRI | >90 |
Output Lumen (lm) | 738Lm |
Color Temperature(K) | 5CCT Selectable |
Default Driver Input | AC120V, 60Hz |
Optional Driver Input | Triac Dimmers 10% - 100% |
Power Factor | >0.9 |
Approved Location | Insulated Ceiling & Damp Locations |
Air Tight | Yes |
Operating Temp. | (-4°F to +104°F) -20 to +40°C |
Beam Angle | 38° |
